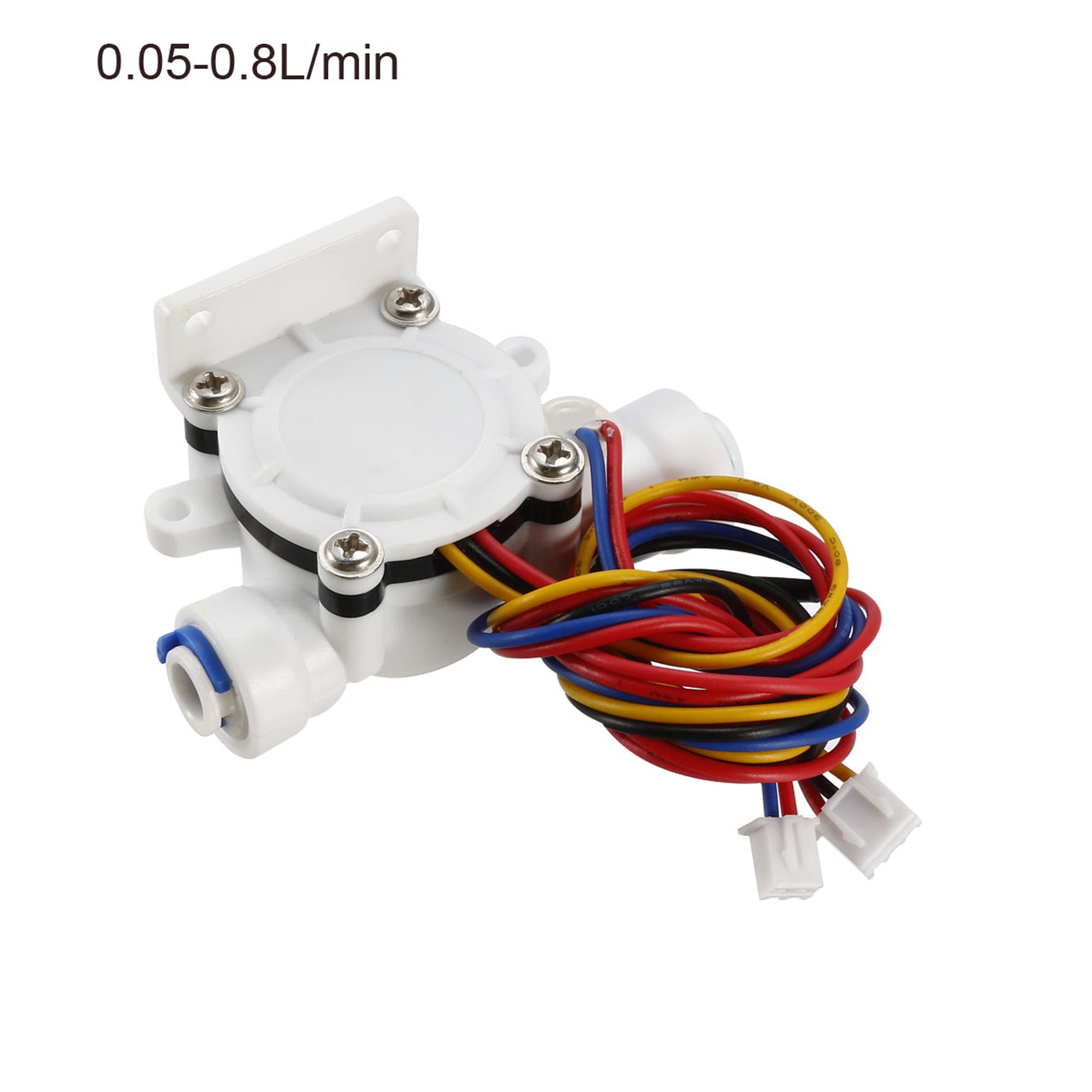

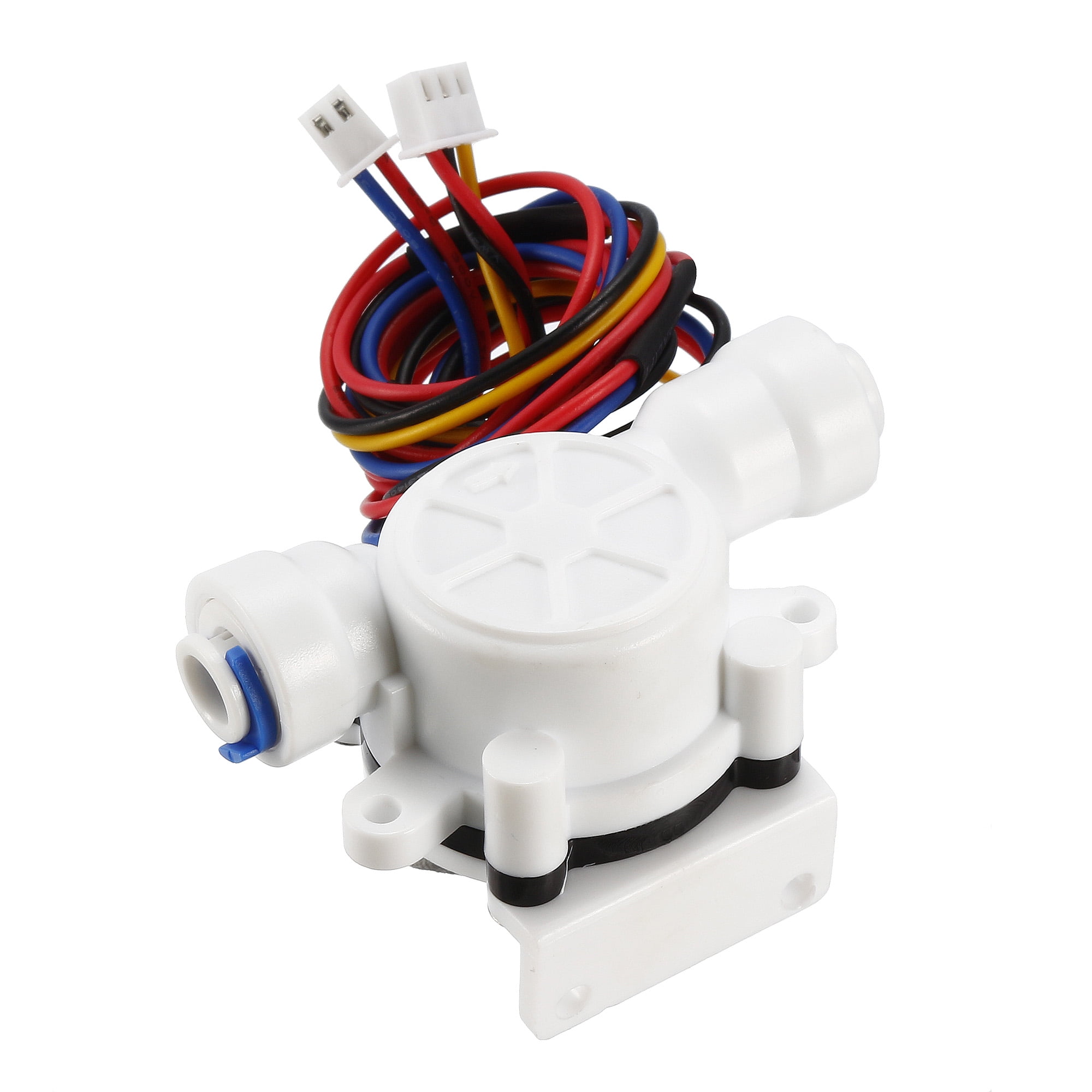

1/4in Quick Connect Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter DC 5V 0.05-0.8L/min

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part. 2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. 3. Wire connection: Red for positive, black for negative, yellow for pulse signal.   Specifications: Product Name: Water Flow Sensor Material: PE(Shell) Size: 68mm x 38mm x 37mm / 2.68″ x 1.5″ x 1.46″(L*W*H) Cable Length: 440mm / 17.32″ Liquid Temperature: Not More Than 60C Rated Voltage: DC 5V Max Current: 10mA(DC 5V) Maximum water pressure: 0.35MPa Flow range: 0.05-0.8L/min Connector: Male XH-3P; XH-2P Connector Size: 1/4in Quick Connect Ingress Protection Rating: IP65 Color: White Net Weight: 50g   Package Included: 1 x Water Flow Sensors   Note:   1. Installed in accordance with flow direction in the product, otherwise there is no signal output. 2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor. Brand: Unique Bargains Assembled Product Weight: 0.11 lb Model: a19052300ux0073 Manufacturer: Unique Bargains Assembled Product Dimensions (L x W x H): 2.68 x 1.50 x 1.46 Inches
