Emergency Stop Switch Metal NC/NO Spring Return – Momentary E-Stop Button 240V 3A

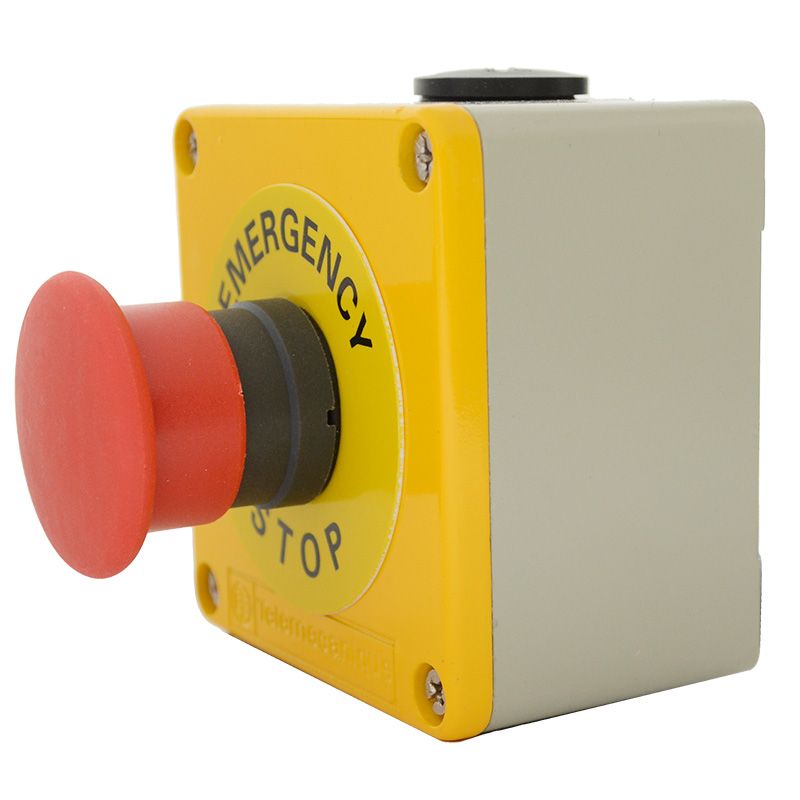

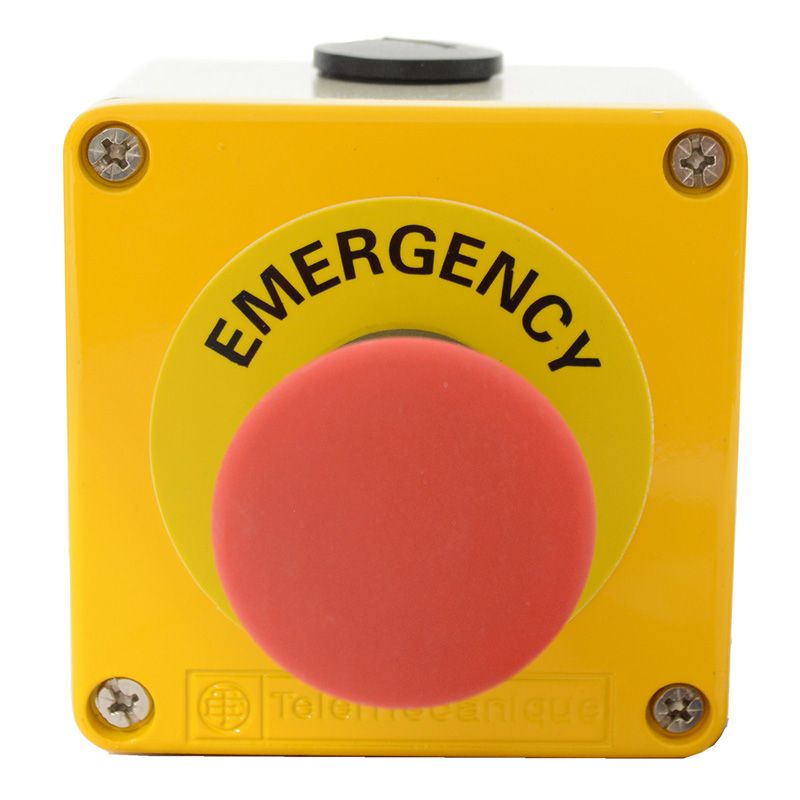

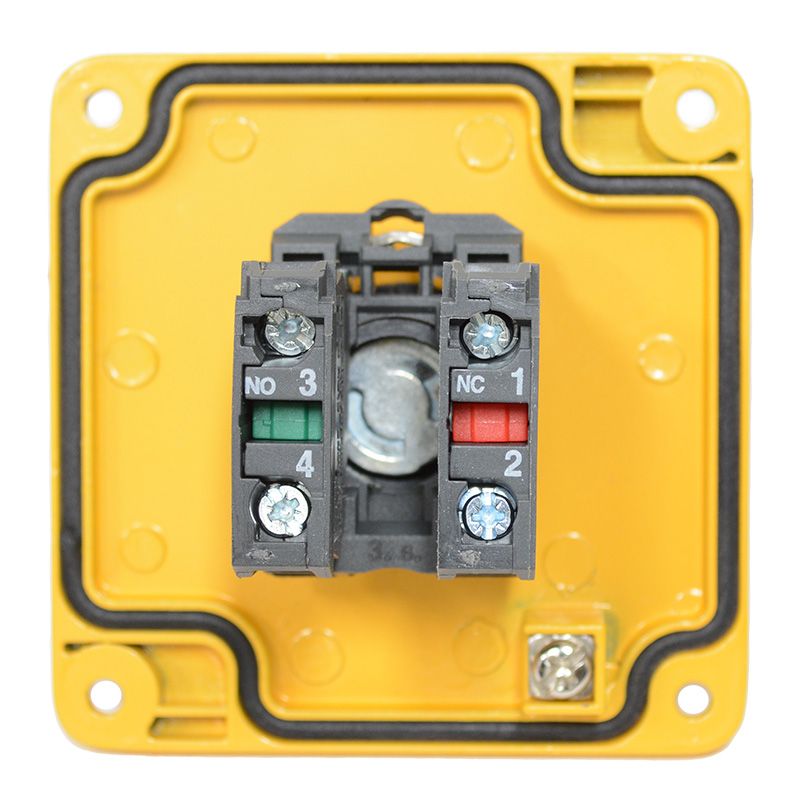

Description Product Description Metal Spring Return Emergency Stop Switch – Momentary Control The LV5099 Metal Case Spring Return Emergency Stop Switch is designed for applications requiring a momentary stop function rather than a latching emergency shutdown. Unlike traditional latching E-stop switches, this unit features a spring return mechanism, meaning the button automatically returns to its original position once released. This makes it ideal for controlled stop functions, testing, and reset operations. Built with a durable metal enclosure, the switch is suited for demanding industrial environments where strength and reliability are essential. The NC and NO contact configuration allows flexible integration into a wide range of control systems. Specifications • Model: LV5099• Contact Configuration: NO / NC• Operation Type: Spring return (momentary)• Operating Temperature: –25°C to 70°C Materials• Housing Material: Metal Dimensions• Width: 72 mm• Depth: 74.5 mm• Height: 82 mm max Typical Applications • Industrial machinery control systems• Control panel momentary stop functions• Testing and reset operations• Workshop equipment controls• Automation systems• Custom electrical builds
